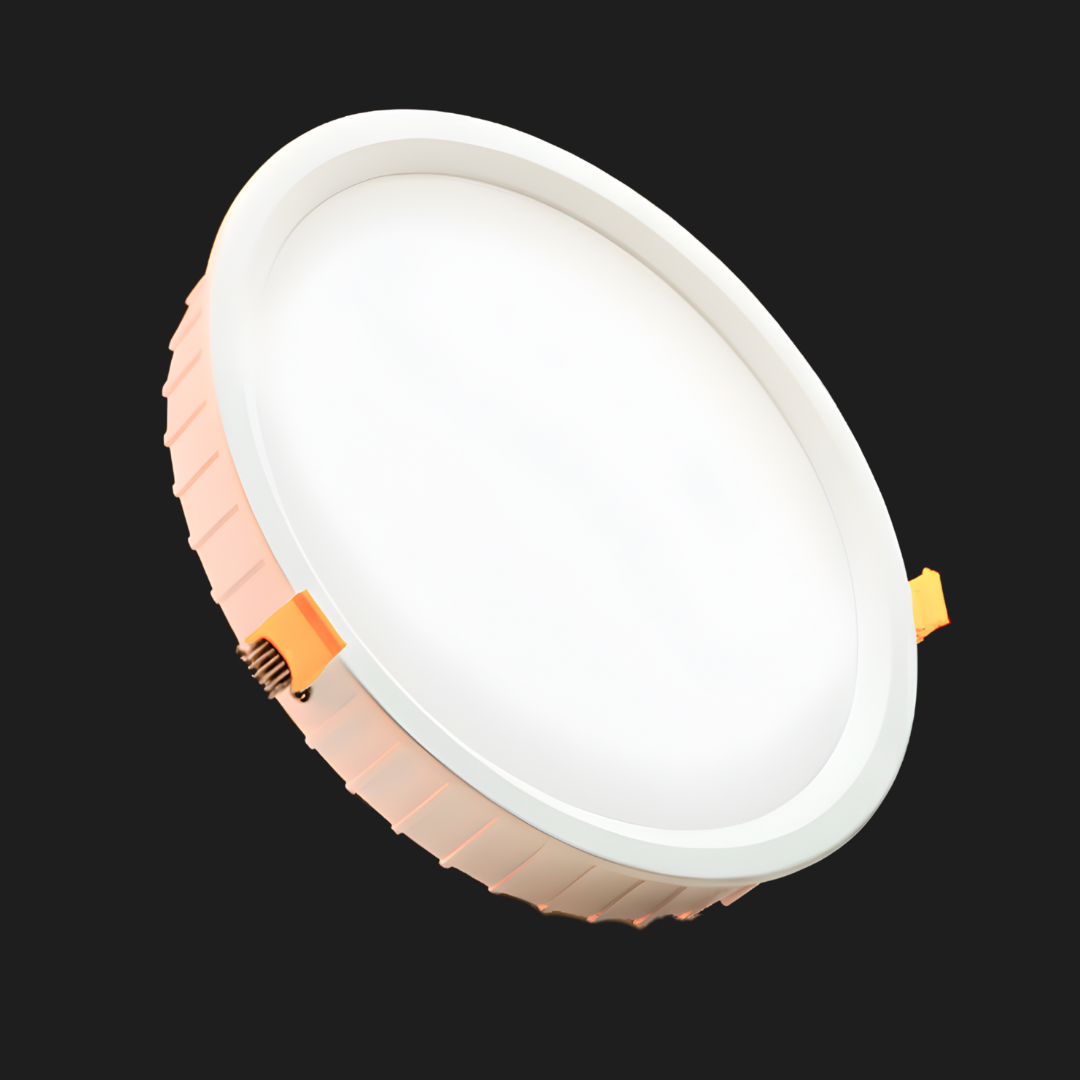

NEXON Slim Downlighter – 12W / 18W / 24W
A sleek, ultra-slim LED downlighter designed for elegant ceiling integration, offering bright uniform lighting with CW, NW, and CCT options.
Additional Product Details
The NEXON Slim Downlighter Series delivers a modern, minimalistic lighting solution ideal for contemporary interiors. With its ultra-slim construction and high-efficiency LED system, it provides smooth, uniform illumination across spaces while blending effortlessly into the ceiling design.
Available in three power variants—12W, 18W, and 24W—the series covers a wide range of applications from compact rooms to larger spaces requiring higher brightness. It comes in CW, NW, and advanced CCT (3-in-1) versions that allow users to switch between Warm White, Natural White, and Cool White modes using a single fixture.
Built with robust materials, stable drivers, high power factor, and excellent thermal management, the NEXON series ensures long-lasting performance. Its slim profile makes it ideal for installations where ceiling depth is limited.
Technical Specification
| Specification | Details |
|---|---|
| Product Name | NEXON Slim Downlighter |
| Available Wattages | 12W, 18W, 24W |
| Colour Options | CW, NW, CCT (3-in-1: WW + NW + CW) |
| Shape | Round |
| Dimensions | 12W → 108 × 24 mm 18W → 133 × 24 mm 24W → 158 × 24 mm |
| Cutout Size | 12W → 100 mm 18W → 125 mm 24W → 150 mm |
| Rated Voltage | 240V AC, 50Hz |
| Operating Voltage Range | 140–270V AC |
| Light Quality | Soft, uniform, wide-beam illumination |
| Power Factor | >0.90 |
| CRI | >80 |
| Surge Protection | Up to 3.5 kV |
| Body Material | Polycarbonate |
| Mounting Type | Slim Concealed / Recessed |
| Body Colour | White |
| Operating Temperature | –10°C to +45°C |
| Lifetime | 25,000 – 30,000 hours |
| Applications | Homes, Shops, Offices, Hotels, Corridors, Living Rooms, Hallways |
| Standard Packaging | 20 pcs |
